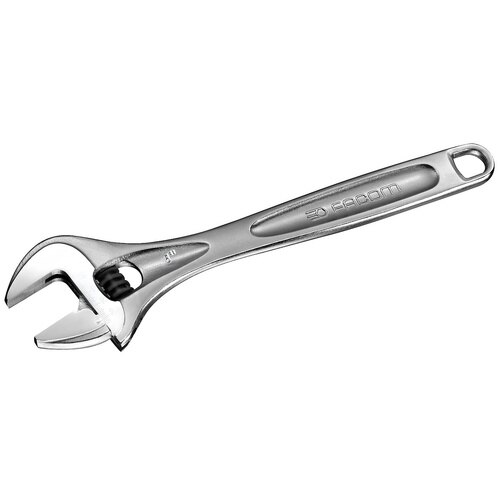

FACOM 113A.6C 113A.C - CHROMED ADJUSTABLE WRENCHES

STANDARDS: NF ISO 6787, ISO 6787, DIN 3117, ASME B107.100

• • • Good access to the button = easy setting.
    • Non-protruding moving jaw at maximum capacity.
    • Pre-adjustment of jaw opening thanks to millimetric gradation.
    • Right-hand button rotation.
    • Range from 4" to 24".
    • Presentation: chromed body and polished head faces.

INFORMATION

• • •

      	113A.6C
      A [mm]	20.0
      Length L [mm]	155.0
      Length L1 [mm]	19.0
      Thickness E [mm]	5.0
      Thickness E1 [mm]	11.8
      Thickness E2 [mm]	6.0
      Thickness E3 [mm]	8.3
      Thickness E4 [mm]	5.8
      Head Height C [mm]	14.8
      Head Height C1 [mm]	18.5
      Head Width B [mm]	45
      Weight [Kg]	0.125
