UPS-III-IS Intrinsically Safe Loop Calibrator

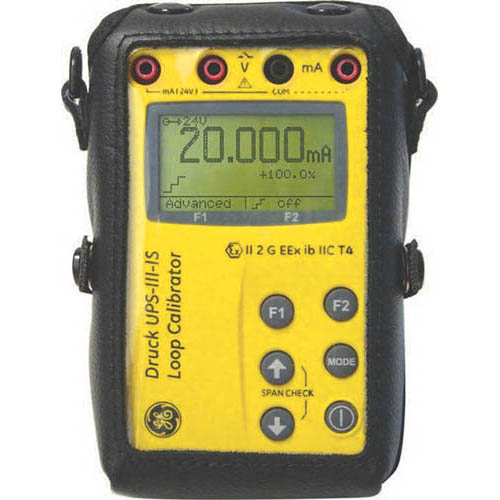

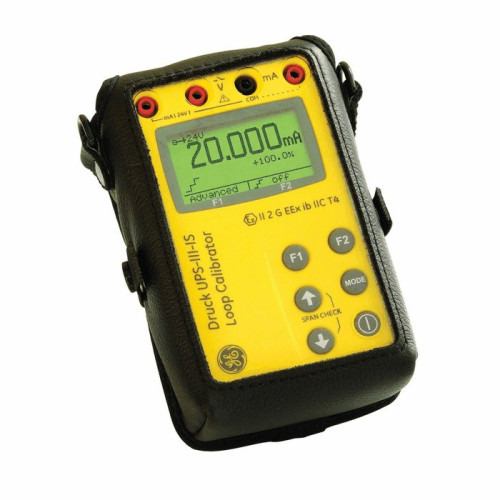

Druck UPS III IS Loop Calibrator

With a smart graphic display and menu-driven interface, the Druck UPS III IS loop calibrator is one of Druck's more advanced, time-saving calibration tools. Producing maximum results with a compact design, the UPS III IS forms part of an essential toolbox that a user may need for calibration and troubleshooting. The calibrator is a necessity for loop testing, instrument maintenance and valve set-up, features an internal loop supply which is available in both measure and source modes - which is essential during a shut-down.

Features & Benefits

• Rugged and extremely compact, making it the perfect solution for on the go jobs in a multitude any environments
• The dimensional measurements are 3.5 in x 5.5 in x 1.7 in (90 mm x 140 mm x 42 mm)
• Super light, weighing only 460g (16.2 oz.)
• Easy read display, much easier to use that traditional knobs, multifunction keys and switches
• Features and accuracy reading of 0.015%, this includes 12-month stability and temperature effects
• The calibrator can maintain a 4:1 calibration ratio with the latest instrumentation, it's typically 10-40 times more accurate than a digital multimeter
• Displays mA and a percentage value of 4 to 20 mA (milliamp) or 0 to 20 mA, it can also convert mA readings to % flow
• The option to step quickly through linearity tests and zero/span adjustments, in valve mode, seating can be checked and the actuator set
• The loop diagnostics and maintenance output instruments is 50 VDC
• Adjustable display contrast and resolution
• The power supply is through the use of industry-standard AA batteries
• Auto power off can be enabled and disabled
• Pin protected, closed case calibration
• HART compatible
• Has an auto power-down 30 minutes after the last key was pressed
• 50 VDC measurement for loop diagnostics and maintenance of voltage output instruments
