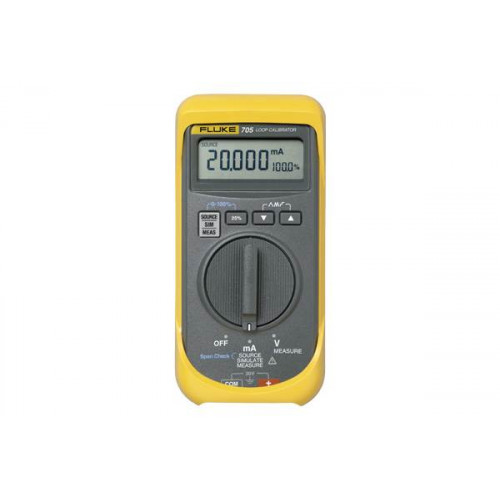

Fluke 705 Loop Calibrator

The Fluke 705 loop calibrator is a cost-effective, integrated solution for calibration, repair and maintenance of milliamp loops. It features:

• mA sourcing, simulation and measurement
• 0.02% accuracy and 0.001 mA resolution
• Simultaneous mA and % of span display
• Selectable step or ramp outputs
• 24 V Loop supply with mA measure
• 0-28 VDC measurement to check Loop Voltage
• Easy battery exchange without opening the case
• Compact case with separate protective holster
• Three year warranty

Low cost calibrator muscle.

For a powerful loop calibrator at a very affordable price, choose the Fluke 705 Loop Calibrator. This feature-rich solution to loop calibration, maintenance and repair offers:

• A large display and simple, pushbutton interface for ease of use.
• Simultaneous mA and % readout for quick, easy interpretation of readings.
• mA accuracy of 0.02%
• Push button 25% steps for fast, easy linearity checks. Save time over traditional knob type controls.
• "Span Check" for fast confirmation of zero and span.
• Selectable slow ramp, fast ramp, and step to provide smooth outputs for valve slewing and loop functional tests.
• 24 volt internal loop supply, so you can power and read a transmitter at the same time without carrying a DMM.
• Single 9V battery that is easily changed.
• 0 - 20 mA or 4 - 20 mA default start up modes.
