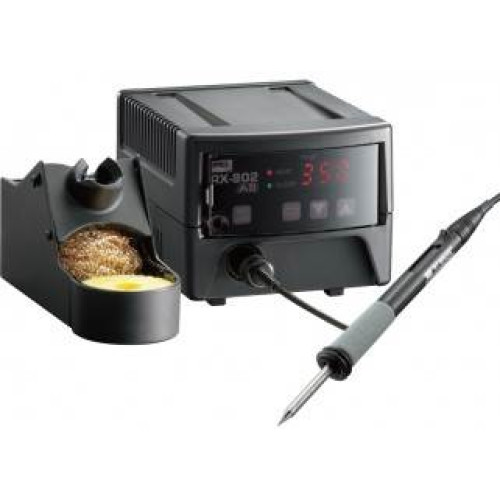

Specifications
| Model | RX-802AS |
|---|
| Voltage | 110V,120V,130V,220V,230V,240V AC 50/60Hz |
|---|
| Power Consumption | 80W |
|---|
| Power Cord Length | 1.2m |
|---|
| Temperature Setting Range | 50–450°C |
|---|
| Ripple temperature | ±5˚C (unloaded) |
|---|
| Insulation Resistance | Over 100MΩ (500V DC) |
|---|
| Accessories | Soldering Iron Stand (ST-21) |
|---|
Control Unit
| Output Voltage | 24V AC |
|---|
| Dimensions | 115(W) × 98(H) × 146(D)mm |
|---|
| Weight | 1.8kg |
|---|
Soldering Unit
| Voltage/Consumption | 24V AC / 72W |
|---|
| Ground Resistance | Less than 2Ω |
|---|
| Leak Voltage | Less than 2mV |
|---|
| Heater | Nichrome heater |
|---|
| Cord Length | 1.2m |
|---|
| Length | 158mm (with RX-80HRT-MB) |
|---|
| Weight | 28g (with RX-80HRT-MB) |
|---|
Equivalent to IPC/EIA J-STD-001C
*The length does not include the cord bushing. The weight does not include the cord.
