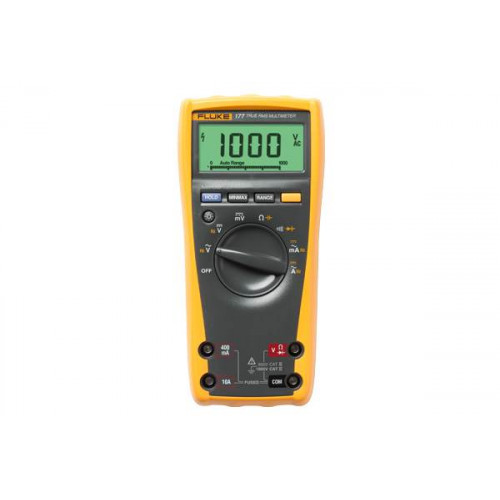

Fluke 177 True RMS Digital Multimeter

Electrician's Dream!

With its precision, reliability and ease of use, the Fluke 177 Digital Multimeter is the preferred solution for professional technicians worldwide. Independently tested for safe use in CAT IV 600 V/ CAT III 1000 V environments, the Fluke 177 is the industry standard with all the features you need to troubleshoot and repair many problems in electrical and electronic systems.

The Fluke 177 Digital Multimeter gives you True-rms voltage and current measurements, 6000-count resolution, manual and automatic ranging and provide frequency, capacitance, resistance, continuity and diode measurements. In addition, the Fluke 177 provides higher 0.09% basic accuracy, a digital display with analog bar graph and backlight.

•

  • Manual and automatic ranging
  • Display Hold and Auto Hold
  • Frequency and capacitance measurements
  • Resistance, continuity and diode measurements
  • Min-max-average recording
  • Closed case calibration through front panel
  • Ergonomic case with integrated protective holster



  Safety conformance

  All inputs are protected to IEN61010-1 CAT IV 600 V/CAT III 1000 V. UL, CSA, TÜV listed and VDE Pending

  • Specifications
    Voltage DC	Accuracy1	±(0.09% + 2)
    	Max. resolution	0.1 mV
    	Maximum	1000 V
    Voltage AC	Accuracy1	±(1.0% + 3)
    	Max. resolution	0.1 mV
    	Maximum	1000 V
    Current DC	Accuracy1	±(1.0% + 3)
    	Max. resolution	0.01 mA
    	Maximum	10 A
    Current AC	Accuracy1	±(1.5% + 3)
    	Max. resolution	0.01 mA
    	Maximum	10 A
    Resistance	Accuracy1	±(0.9% + 1)
    	Max. resolution	0.1 Ω
    	Maximum	50 MΩ
    Capacitance	Accuracy1	±(1.2% + 2)
    	Max. resolution	1 nF
    	Maximum	10,000 µF
    Frequency	Accuracy1	±(0.1% + 1)
    	Max. resolution	0.01 Hz
    	Maximum	100 kHz
    1. Accuracies are best accuracies for each function
    Environmental Specifications
    Operating temperature	-10°C to +50°C
    Storage temperature	-30°C to +60°C
    Humidity (without condensation)	0% – 90% (0°C – 35°C) 0% – 70% (35°C – 50°C)
    Safety Specifications
    Overvoltage category	EN 61010–1 to 1000 V CAT III EN 61010–1 to 600 V CAT IV
    Agency approvals	UL, CSA, TÜV listed and VDE Pending
    Mechanical and General Specifications
    Size	43 x 90 x 185 mm
    Weight	420 g
    Warranty	Lifetime
    Battery life	Alkaline ~200 hours typical, without backlight
