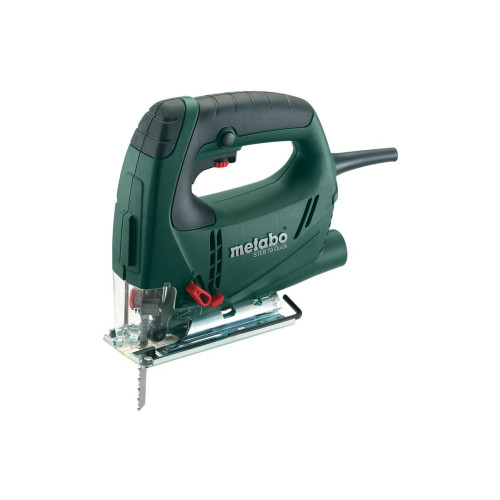

ELECTRONIC ORBITAL JIGSAW 70mm 570W,220V METABO
STEB 70 Quick (601040000) Jigsaw
Order no.: 601040000
EAN: 4007430192806
§ Rated Input Power:570 W
§ Cutting depth wood:70 mm / 2 3/4 "
§ Strokes – no load:900 - 3300 /min
§ Weight (without power cable):2 kg / 4.4 lbs
§ Metabo Quick for changing saw blades without tools
§ Top handle with non-slip soft-grip surface
§ Selectable shaving blower function ensures free view of cutting line
§ Vario (V)-Electronics for working with customised stroke rates for the materials used
· Description
- Metabo Quick for changing saw blades without tools
- Low-lying saw blade guidance for precise cuts
- Top handle with non-slip soft-grip surface
- Selectable shaving blower function ensures free view of cutting line
- Vario (V)-Electronics for working with customised stroke rates for the materials used
- Extraction possibility by means of connecting an all-purpose vacuum cleaner
- Precision guide rail and guiding device available as accessory
· Technical data
Characteristics
|
Rated Input Power |
570 W |
|
Output Power |
335 W |
|
Cutting depth wood |
70 mm / 2 3/4 " |
|
Cutting depth NF metal |
20 mm / 3/4 " |
|
Cutting depth sheet steel |
6 mm / 1/4 " |
|
Swivel range from / to: |
- 45 / + 45 ° |
|
Pendulum Stroke Levels |
4 |
|
Strokes – no load |
900 - 3300 /min |
|
Saw Blade Stroke |
22 mm / 7/8 " |
|
Weight (without power cable) |
2 kg / 4.4 lbs |
|
Cable Length |
2.4 m / 8 ft |
Vibration
|
Sawing wood |
12 m/s² |
|
Sawing metal |
8.5 m/s² |
|
Uncertainty of measurement K |
2 m/s² |
Noise emission
|
Sound Pressure Level |
89 dB(A) |
|
Sound power level (LwA) |
