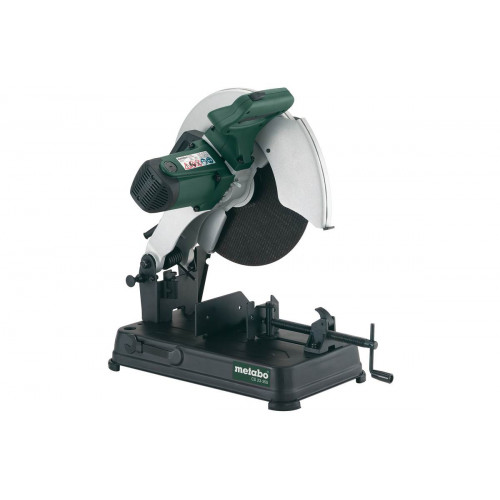

METAL CHOP SAW, 14" , 2300 W 602335000 METABO
· Description
- For single phase alternating current
- Powerful and fast cutting for profiles, pipes and rods made of steel, cast iron, aluminium and other non-ferrous metals.
- Motor and gear with ball bearing for high loads
- Spindle lock for easy disc change
- Quick clamping device with variable mitre conversion from -15° up to 45°
- Easy to transport due to built-in handle and locking device
- High safety thanks to swivelling cutting guard
- Storage for double-ended wrench at the machine table
- Safe working thanks to adjustable spark guide plate
- Adjustable cutting depth limiter
· Technical data
Characteristics
|
355 x 25.4 mm / 14 x 1 " |
Grinding wheels (Ø x bore) |
|
18 Nm / 160 in-lbs |
Torque |
|
4000 /min |
No-Load Speed |
|
2300 W |
Rated Input Power |
|
65 mm / 2 1/2 " |
- Steel bars |
|
125 mm / 5 " |
- Pipes |
|
115 x 130 mm / 4 1/2 x 5 1/8 " |
- Steel sections |
|
238 mm / 9 3/8 " |
Maximum opening of vice jaws |
|
468 x 282 mm / 18 7/16 x 11 3/32 " |
Dimensions of the base plate |
|
400 mm / 15 3/4 " |
Transport Height |
|
16.9 kg / 37 lbs |
Weight |
|
2.7 m / 9 ft |
Cable Length |
|
91 dB(A) |
Sound Pressure Level |
|
104 dB(A) |
Sound power level (LwA) |
|
3 dB(A) |
Uncertainty of measurement K |
