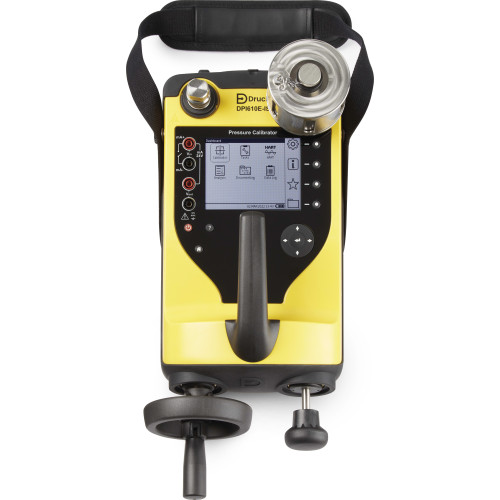

Druck DPI610E - Handheld Pressure Calibrator (Hydraulic; DPI610E-HC and SHC)
The item on this page is a product selection tool for hydraulic versions of the DPI610E. These are the DPI610E-HC and DPI610E-SHC. For pneumatic models, please see the other product selection tool on this page.
The DPI610E handheld pressure calibrator is the latest and the sixth generation of the DPI600 family.
The DPI610E combines effortless pressure measurement and generation, signal measurement and loop power with significantly improved pump capabilities and a powerful touch and button user interface.
With a robust design, the unit has been engineered for instrument technicians, using input from those working in the field. It is an ideal solution to your test and calibration application.
Pressure accuracy
By continuing to use Druck’s in-house sensor technology, the DPI610E provides highly accurate, reliable, and stable pressure measurement. Total 1 year uncertainty down to 0.025% Full Scale (FS) over a temperature range of -10°C to +50°C gives you complete confidence in the measurement accuracy between annual calibrations.
The item on this page is a product selection tool for hydraulic versions of the DPI610E. These are the DPI610E-HC and DPI610E-SHC. For pneumatic models, please see the other product selection tool on this page.
The DPI610E handheld pressure calibrator is the latest and the sixth generation of the DPI600 family.
The DPI610E combines effortless pressure measurement and generation, signal measurement and loop power with significantly improved pump capabilities and a powerful touch and button user interface.
With a robust design, the unit has been engineered for instrument technicians, using input from those working in the field. It is an ideal solution to your test and calibration application.
Pressure accuracy
By continuing to use Druck’s in-house sensor technology, the DPI610E provides highly accurate, reliable, and stable pressure measurement. Total 1 year uncertainty down to 0.025% Full Scale (FS) over a temperature range of -10°C to +50°C gives you complete confidence in the measurement accuracy between annual calibrations.
Part numbers and pressure ranges
The DPI610E is a configurable product with several options available.
First, there are four main models:
- DPI610E-PC: pneumatic safe area
- DPI610E-HC: hydraulic safe area
- DPI610E-SPC: pneumatic hazardous area
- DPI610E-SHC: hydraulic hazardous area
Pressure ranges are from 5 to 15000 PSI with choices for gauge and absolute pressure.
Please refer to pages 9 and 10 of this document for a complete breakdown of part number construction, options, specifications and more.
| Range code | Pneumatic | Hydraulic | |
| 350 mbar / 5 psi / 35 kPa | 03 | G | - |
| 1 bar / 15 psi / 100 kPa | 05 | G | - |
| 2 bar / 30 psi / 200 kPa | 07 | G | - |
| 3.5 bar / 50 psi / 350 kPa | 08 | G | - |
| 7 bar / 100 psi / 700 kPa | 10 | G | - |
| 10 bar / 150 psi / 1000 kPa | 11 | G | - |
| 20 bar / 300 psi / 2 MPa | 13 | G | - |
| 35 bar / 500 psi / 3.5 MPa | 14 | G | - |
| 70 bar / 1000 psi / 7 MPa | 16 | - | G or A |
| 100 bar / 1500 psi / 10 MPa | 165 | - | G or A |
| 135 bar / 2000 psi / 13.5 MPa | 17 | - | G or A |
| 200 bar / 3000 psi / 20 MPa | 18 | - | G or A |
| 350 bar / 5000 psi / 35 Mpa | 20 | - | A |
| 700 bar / 10000 psi / 70 MPa | 22 | - | A |
| 1000 bar / 15000 psi / 100 MPa | 23 | - | A |
Brand new user interface
The DPI610E user interface can be fully driven from either the touchscreen or via push buttons to allow use with or without gloves.
- The DASHBOARD allows quick application selection without the need for menus or special keys.
- The TASK menu provides a library of popular configurations. From the dashboard screen, three clicks completely reconfigure the DPI610E for the next job.
- From the FAVORITES menu, it’s even quicker to access regularly used and customized TASKS.
- Electrical connection diagrams can be viewed on screen
Includes
- DC Power Supply (I0610E-PSU)
- BSP Swivel Adapter (184-203)
- NPT Swivel Adapter (184-226)
- Blanking Plug (111M7272-1)
- Hose sets: 1m long (IO620-HOSE-H1) or Intrinsically Safe (IO620-HOSE-H1-IS)
- Reservoir (PV411-115 or Intrinsically Safe PV411-115-IS) - packed separately
- 250 ml Reservoir Filler Bottle (1S-11-0085)
- Electrical Test Lead Set (I06X-LEAD)
- 2m USB Cable (IO610E-USB-CABLE)
- DPI 610E Quick Start and Safety Manual (165M0437)
- Certificates Document Pack (IS product only)
- Factory Calibration Certificate
