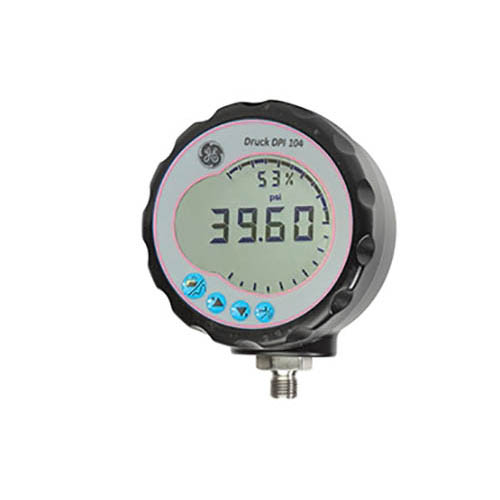

GE Druck DPI104-2-10000PSI-SG

Digital Pressure Gauge, 0 to 10,000 psi (0 to 700 bar), 0.05% FS Accuracy, Sealed Gauge

The GE Druck DPI104-2-10000PSI-SG Digital Pressure Gauge has a pressure range to 10,000 psi (700 bar) and is suitable for Sealed Gauge pressure types. The DPI 104 is a microprocessor-controlled, digital pressure gauge that combines precision and functionality in a compact, robust and simple-to-use package. The DPI 104 matches advanced silicon sensor technology with several convenient design features, resulting in an accurate, versatile yet affordable digital test gauge. The DPI 104 provides a reliable and economic solution for a wide range of pressure sensing applications.

Product Features:

• Pressure range: 0 to 10,000 psi (0 to 700 bar)
• Pressure type: Sealed Gauge
• 0.05% full scale accuracy
• Eleven selectable pressure units
• Large, easy to read display with five digit resolution
• % pressure indication with bar graph for quick visual reference
• Temperature compensated accuracy from 14°F to 122°F (-10°C to 50°C)
• Pressure switch test for capturing open and closed values from external pressure switches
• Min/Max, tare and alarm functions
• Adjustable mounting positions
• IDOS compatible and RS232 serial interface for data transfer to PC
• 0 to 5V analog output

Includes

• 1 - DPI 104 Digital Pressure Gauge
• 1 - 9V Alkaline Battery
• Calibration Certificate
