3M™ Hot Melt connectors come pre-loaded with advanced 3M Hot Melt adhesive. There is no need for epoxy mixing and application so the termination time averages just two minutes.

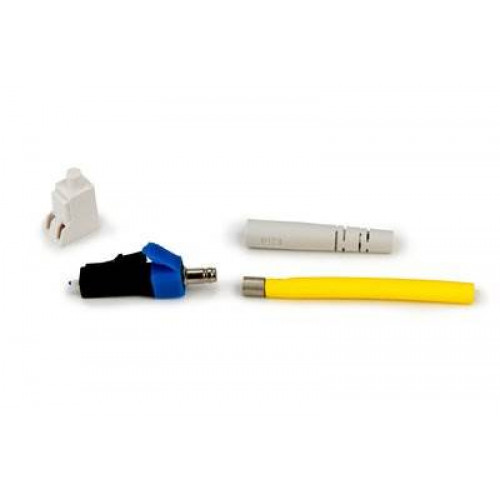

The 3M™ Hot Melt connector’s reliability, high performance and ease of use, in both indoor and outdoor LANs worldwide, have made it an industry favorite. The 3M™ Hot Melt LC connector, in both singlemode and multimode, has all the advantages of our pre-loaded Hot Melt technology — and at half the size of our SC connector. With its high-performance adhesive and precision-centered ferrule polishing, it meets TIA 568B.3 requirements for a broad range of applications. To complete termination of the 3M™ Hot Melt LC connector, both the 3M™ Hot Melt Fiber Termination Kit 6366/6362-230V and the 3M™ Hot Melt LC Expansion Kit 6650-LC are required. Choose between the 3M™ Hot Melt Fiber Termination Kit 6366 and 3M™ Hot Melt Fiber Termination Kit 6362-230V, depending on voltage requirements.
Specifications
| Boot Color | White |
| Boot Material | Thermoplastic Elastomer |
| Cable Type | Jacketed, 1.6 - 2.0mm |
| Connector Body Material | Engineered Resin |
| Connector Durability | <0.2 dB after 500 matings |
| Connector Ferrule Material | Zirconia Ceramic |
| Connector Housing Material | Engineered resin |
| Connector Style | Hot Melt |
| Connector Type | LC/Simplex |
| Family | Hot Melt |
| Fiber Size | 125 µm |
| Insertion Loss Typical | <0.2 dB |
| Mode Type | Singlemode |
| Product Type | Connector |
| Shell Color | Blue |
| Storage Temperature | -40 to 85 Degree Celsius |
| Testing Specifications | TIA |
| Typical Reflectance (dB) | <-55 dB |
