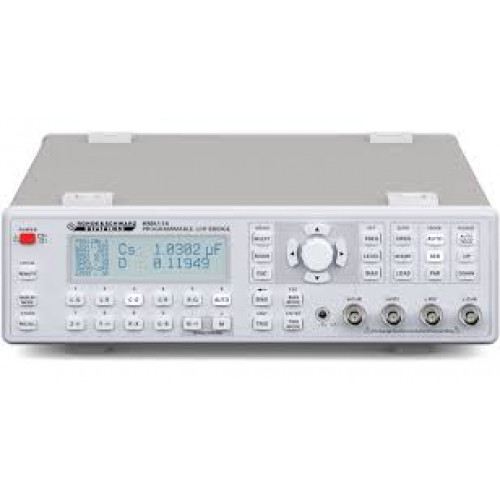

LCR-Bridge-HM8118
200 kHz LCR-Bridge
 | Basic Accuracy 0.05 % |
| Measurement Functions L, C, R, |Z|, X, |Y|, G, B, D, Q, Θ, ∆, M, N |
| Test Frequencies 20 Hz…200 kHz |
| Up to 12 Measurements per Second |
| Parallel and Serial Mode |
| Binning Interface HO118 (optional) for automatic Sorting of Components |
| Internal programmable Voltage and Current Bias |
| Transformer Parameter Measurement |
| External Capacitor Bias up to 40 V |
| Kelvin Cable and 4-Terminal SMD Test Adapter included |
| Galvanically isolated USB/RS-232 Dual-Interface, optional IEEE-488 (GPIB) |
| Title | Products | Languages | File Size | File Info | DL | ||||
|---|---|---|---|---|---|---|---|---|---|
 HAMEG DB EN HM8118 | HM8118 |  | 487.4 KB |
|  | ||||
 HAMEG Interface E 8100 Device-Options-Accessories-List Programmable Measuring Instruments Series 8100 | HMF2550 HMF2525 HM8150 HM8135 HM8134-3 HM8123 HM8118 HM8115-2 HM8112-3 | | 979.8 KB |
| | ||||
 HAMEG DB DE HM8118 | HM8118 |  | 488.4 KB |
| | ||||
 HAMEG Interface D 8100 Geräte-Optionen-Zubehör-Liste Steuerbare Messgeräte Serie 8100 | HMF2550 HMF2525 HM8150 HM8135 HM8134-3 HM8123 HM8118 HM8115-2 HM8112-3 | | 977.4 KB |
| | ||||
 HAMEG DB ES HM8118 | HM8118 |  | 2.2 MB |
| | ||||
 HAMEG DB FR HM8118 | HM8118 |  | 490.2 KB |
| |
