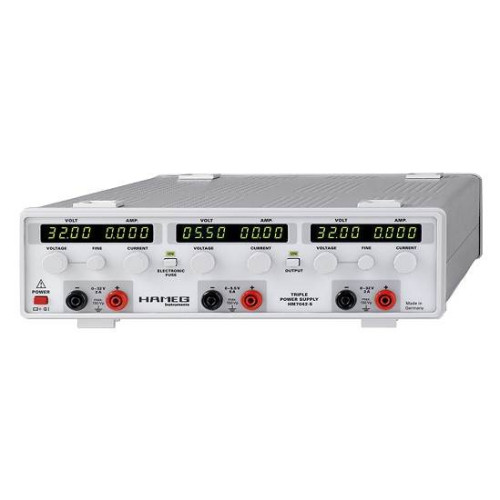

Triple Power Supply Unit-HM7042-5
HM7042-5
Triple Power Supply Unit
 | 2 x 0…32 V/0…2 A 1 x 0…5.5 V/0…5 A |
| High-Performance and inexpensive Laboratory Power Supply |
| Floating, overload and short-circuit proof Outputs |
| Separate Voltage and Current Displays for each Output 4 Digits at Channel 1+3; 3 Digits at Channel 2 |
| Display Resolution: 10 mV/1 mA at Channel 1+3; 10 mV/10 mA at Channel 2 |
| Protection of sensitive Loads by Current Limit or Electronic Fuse |
| Pushbutton to activate/deactivate all Outputs |
| Low Residual Ripple, high Output Power, excellent Regulation |
| Parallel (up to 9 A) and Series (up to 69.5 V) Operation |
| Temperature-controlled Fan |
| Title | Products | Languages | File Size | File Info | DL | ||||
|---|---|---|---|---|---|---|---|---|---|
 data en HM7042 5 | HM7042-5 |  | 357.6 KB |
|  | ||||
 HAMEG Interface E Power Device-Options-Accessories-List Power Supplies | HMP4040 HMP4030 HMP2030 HMP2020 HM8143 HM7044 HM7042-5 | | 970.5 KB |
| | ||||
 data de HM7042 5 | HM7042-5 |  | 358.7 KB |
| | ||||
 HAMEG Interface D Power Geräte-Optionen-Zubehör-Liste Netzgeräte | HMP4040 HMP4030 HMP2020 HMP2030 HM8143 HM7044 HM7042-5 | | 969.4 KB |
| | ||||
 data es HM7042-5 | HM7042-5 |  | 358.0 KB |
| | ||||
 data fr HM7042-5 | HM7042-5 |  | 358.7 KB |
| | ||||
