| product description: | order number: 931 825-101 |

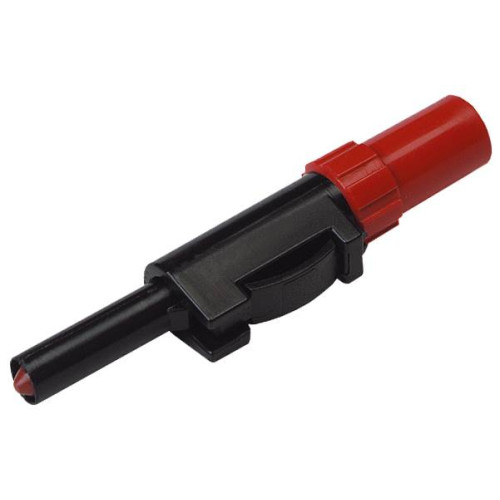

| description: | Touch protected plug to assemble with screw connection for cables up to 1.5mm². Insulated by latching and sprung insulating sleeve, to be released by pressure on the lateral locking spring. plug with contact spring, 4mm diameter. |
| typ: | SLS 20 B rot/red |
| system: | 4 mm sliding sleeve system |
| order number: | 931 825-101 |
| color |  |
| other color versions: |  |
| technical data | |
| measurement category acc. to IEC 61010: | CAT I |
| pin dimensions | 4 mm |
| type of contact: | pin (spring loaded) |
| type of termination: | screw |
| rated voltage: | 30 VAC / 60 VDC |
| rated current: Please consider derating curve! | 16 A |
| contact resistance: | 5 mOhm |
| material | |
| contact material: | contact pin: brass contact spring: copper - beryllium |
| contact surface material: | nickel |
| housing material: | POM |
| environmental conditions: | |
| temperature range: | -25 °C to +80 °C |
| drawing | |
| |  |
