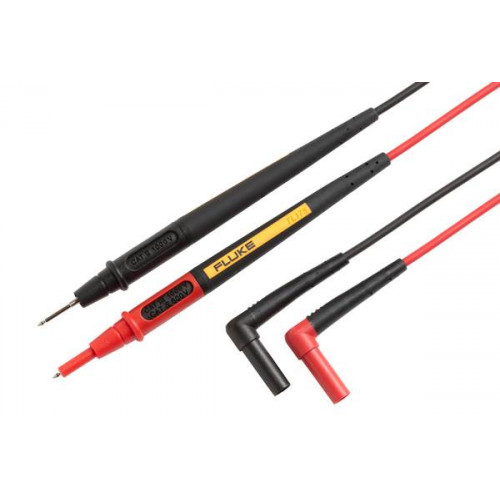

Fluke TL175 TwistGuardTM Test Leads

The Fluke TL175 TwistGuard™ Test Leads offer adjustable length test tips for use in different measurement environments. The TwistGuard™ adjustable tips enhance safety and versatility length. The WearGuard™ indicator shows damage to leads and provides heavy duty strain relief to withstand over 30,000 bends.

• • Patented TwistGuard™ extendable tip shroud meets the highest electrical safety requirements to reduce tip exposure while providing the versatility needed for most measurements
  • New WearGuard™ lead wire wear indication. Each test lead is covered by two layers of silicone insulation; inner contrasting color is exposed when the leads are nicked, scuffed, or otherwise damaged and in need of replacement
  • Double insulated silicone leads. TL175 test leads withstand high temperatures and remain flexible in cold temperatures
  • Extra-heavy duty strain relief on both probe-end and plug-end, tested beyond 30,000 bends without failure
  • Universal input plugs are compatible with all instruments that accept standard 4 mm shrouded banana plugs
  • Ratings: CAT II 1000 V, CAT III 1000 V, CAT IV 600 V, 10 A max., Pollution Degree 2
  • TL175E also available. Includes removable 4 mm lantern tips that thread onto the lead tip
  • Probes always show correct category rating for tip being used
  • Environmental ratings: -20°C to 55°C (-4°F to 131°F), altitude: 2000 m (6,562 ft)
  • Conforms to EN61010-031
  • One-year warranty

• Ratings: CAT II 1000 V, CAT III 1000 V, CAT IV 600 V, 10 A max., Pollution Degree 2
  Exposed probe tip length: 19 to 4 mm (0.75 to 0.16 in)
  Environmental ratings: -20°C to 55°C (-4°F to 131°F), altitude: 2000 m (6,562 ft)

  TL175E also available. Includes removable 4 mm lantern tips that thread onto the lead tip.
  Conforms to EN61010-031
