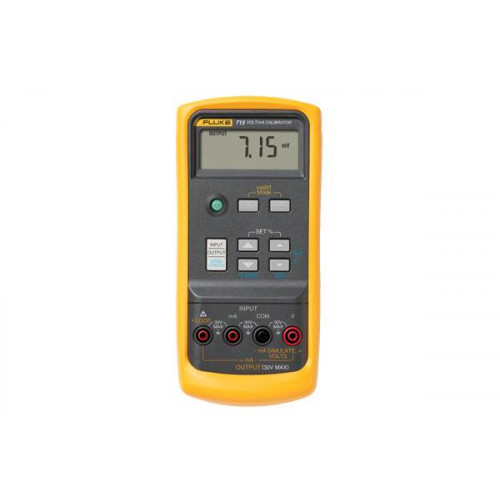

Fluke 715 Volt/mA Calibrator
The Fluke 715 Volt/ mA Calibrator delivers outstanding performance, durability and reliability. Offered in the rugged Fluke 80 Series DMM package, the calibrator is compact, lightweight, and easy to carry. With a push button interface similar to the multifunction Fluke 750 Series Documenting Process Calibrators, the 715 is easy to use. It is EMI tolerant, dust and splash resistant, and features a removable battery door for quick battery changes.
Features at a Glance:
- Measure loop current (0-20 mA, 4-20 mA) signals with very high accuracy of 0.015% and 1 mA resolution
- Measure voltage output process signals from PLCs, transmitters
- Source or simulate 24 mA loop current
- Source voltage to 100 mV or 10V
- 24V loop supply with simultaneous current measurement
- Enhanced voltage and current measure and source accuracy
- Improved battery life
- 250 ohm HART resistor with loop power
- Holster features test lead storage
- Compatible with toolpack magnetic hanging system
- Step and linear ramp output function
- Configurable zero and span settings
Functional Specifications Measure / Source mV Range 0 to 200 mV Resolution 0.01 mV Accuracy 0.015% + 2 counts Measure / Source V Range 0 to 20 V Resolution 0.001 V Accuracy 0.01% + 2 counts Measure / Source/ Simulate mA (% of span) Range 0 to 24 mA (-25% to 125%) Resolution 0.001 mA Accuracy 0.01% + 2 counts Sink (simulate transmitter) display mA or % of span Specifications Loop power Range 24 V DC Accuracy ±10% Drive; 20 mA into 1000 Ω for battery > 6.8 V; 700 Ω for battery 5.8 to 6.8 V Display Clear 5 digit LCD Environmental Specifications Operating temperature -10°C to 55°C Storage temperature -40°C to 60°C Humidity (without condensation) 95% (10°C to 30°C) 75% (30°C to 40°C) 45% (40°C to 50°C) 35% (50°C to 55°C) Operating altitude 3,000 m max Safety Specifications Safety CSA C22.2 No. 1010.1:1992 Mechanical and General Specifications Size (L x W x D) 187 x 87 x 32 mm (7.93 x 3.86 x 2.06 in) Weight Approx. 330 g (21 oz) Warranty 3 years Shock and vibration Random, 2 G, 5-500 Hz 1 m drop test Battery type Single 9 V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline
