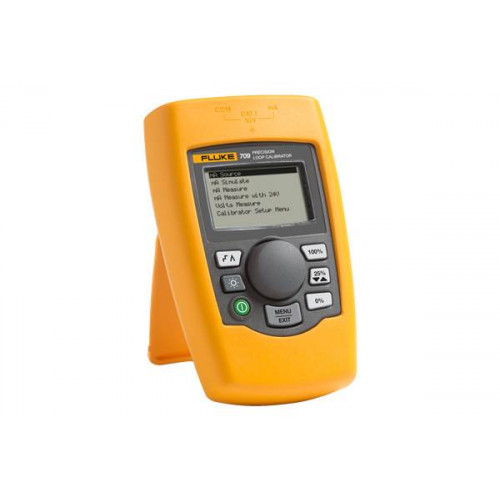

Fluke 709 Precision Loop Calibrator
The Fluke 709 mA loop calibrator is designed to save time and produce high-quality results. This tool reduces the time it takes to measure, or source, voltage or current and power up a loop.
The Fluke 709 Precision Loop Calibrator is built around a user friendly interface with a Quick-Set rotary encoder knob. The protective holster easily fits into a technician’s hand and the large backlit display is easy to read, even in dark, cramped worked areas. The 709 offers:
- Best-in-class accuracy at 0.01% reading
- Small rugged design operates on (6) standard AAA batteries
- Intuitive user interface with Quick-Set knob for fast setup, easy use
- Built in selectable 250 Ω resistor for HART communication
- 24 V DC loop power with mA Measure Mode (-25% to 125%)
- Resolution of 1 µA on mA ranges and 1 mV on voltages ranges
- Simple two wire connection for all measurements
- Auto Shutdown to conserve battery life (adjustable up to 30 minutes)
- Variable step & ramp time in seconds
- Adjustable span selection (0 to 20 mA or 4 to 20 mA)
- Valve Test (simulate defined mA values with % keys)
Detailed Specifications Functions mA source, mA simulate, mA read, mA read/loop power, and volts read. Ranges mA (0 to 24 mA) and Volts (0 to 30 V DC) Resolution 1 µA on mA ranges and 1 mV on voltage range Accuracy 0.01% ± 2 counts, all ranges (@23° ± 5°C) Operating temperature range -10°C to 55°C (14°F to 131°F) Humidity range 10 to 95% non-condensing Stability 20 ppm of F.S. /°C from -10°C to 18°C and 28°C to 55°C Display 128 x 64 pixels, LCD graphic w/backlight, .34 high digits Power 6 AAA alkaline Battery life 40 hours typical Loop compliance voltage 24 V DC @ 20 mA Over-voltage protection 240 V AC Overload current protection 28 mA DC EMC EN61326 Annex A (Portable Instruments) Dimensions (L x W x D) 15 x 9 x 3 cm (6 x 3.6 x 1.3 in) Weight 0.3 kg (9.5 oz) Included accessories NIST traceable calibration certificate with data, batteries, test leads, and manual Warranty One year
