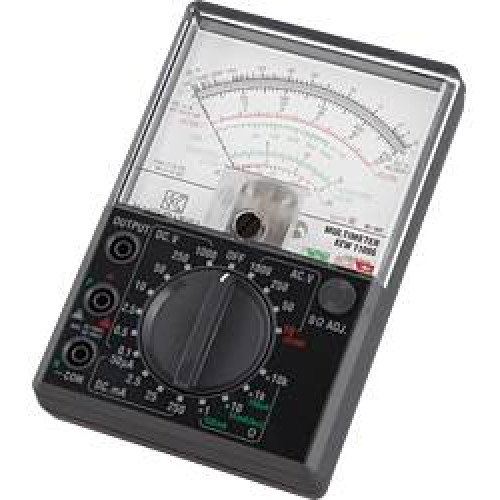

Analogue Multimeters

1 reviews | Write a review

Brand: Kyoritsu

Product Code: 1109S

Mejdaf part number 80-096B

Availability: 19

•

Mirrored scale for easy and accurate reading.

•

Output terminal to cut off DC component when measuring AC voltage.

•

Safety designed input terminals and test leads.

Do not make voltage measurements on industry power lines of 250V
or higher.

DC V	0.1/0.5/2.5/10/50/250/1000V \|±3% of FS (20kΩ/V)
AC V	10/50/250/1000V (9kΩ/V) \|±3% of FS
DC A	50µA/2.5/25/250mA \|±3% of FS
Ω	2/20kΩ/2/20MΩ \|±3% of scale length
Decibel	-10 - +62dB
hFE	0 - 1000 (Ω × 10) \|±3% of scale length
Withstand Voltage	6000V AC for 1 minute
Power Source	R6 (AA) (1.5V) × 2 6F22 (9V) × 1
Dimensions	150(L) × 100(W) × 47(D)mm
Weight	330g approx.
Accessories	7066A (Test leads) 8901 (Fuse [0.5A/250V]) × 2 R6 (AA) × 2 6F22 × 1 Instruction Manual
Optional	9168 (Carrying Case)
