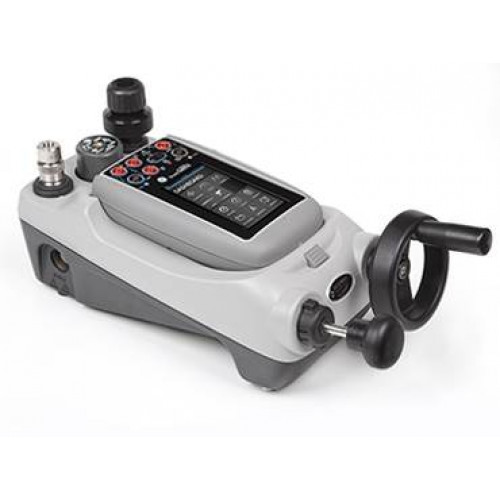

DPI 620G Genii Advanced Modular Calibrator
Powerful productivity in your hands, the modular DPI 620 Genii delivers a range of calibration tasks, in one compact hand-held system. Unique among calibrators, the DPI 620 Genii is driven by a touch and swipe interface, making it faster and simpler to access every function in this world-class multifunction calibrator. Intuitive command menus allow you to fully load supporting documentation for every device, so your engineers always have the latest information at their fingertips and are up and running in minutes.
The new Genii brings you, at a glance:
- Accuracy from 0.0025%rdg+ 0.002%FS
- Swipe navigation
- Display themes for fast access to all functions
- Contrast settings for light or dark environments
- Powerful Windows CE (WEC7) operating system
- Full Hart Communicator
- Foundation Fieldbus
- Bluetooth, USB and WiFi as standard
- Robust build, portable and light
- Document library
- Error free reporting
- Free library and software updates
Pressure Generation Stations:
- Advanced pressure generation
- 95% vacuum to 20 bar/300 psi pneumatic
- 95% vacuum to 100 bar/1500 psi pneumatic
- 0 to 1000 bar/15,000 psi hydraulic
- Replace hand pumps
Pressure Measurement Modules:
- 25 mbar to 1000 bar (10 inH2O to 15000 psi)
- Accuracy from 0.005%FS
- Fully interchangeable modules with no need for set-up, calibration or tools
The DPI 620 Genii Multifunction Calibrator excels in:
- Petrochemical
- Chemical
- Oil & Gas
- Power
- Food
- Pharmaceuticals
Other DPI Genii benefits include:
- View, change, clone and store HART device configurations
- Work off-line to create and change HART configurations
- Transfer HART device configurations to your PC
- Measure and source analogue variables without secondary equipment
- No power during shutdown? Genii provides 24V
- Need a 230 ohm resistor? Just select from the menu
- World-class calibration in the same unit
- Full data integration capability
- Bluetooth, USB and WiFi as standard
- Robust new case
Product Downloads
| Download | Language | File Type |
|---|---|---|
| DPI 620 Genii Brochure 475 KB | English | |
