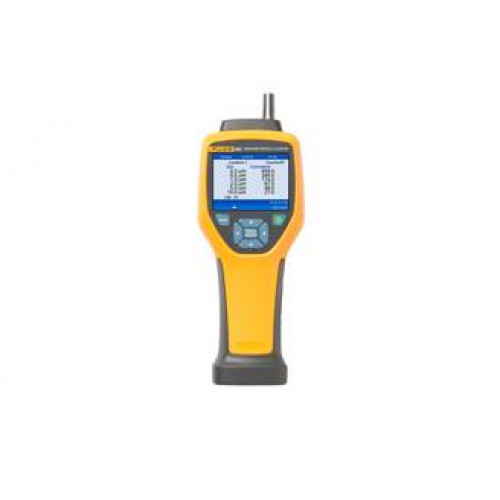

Fluke 985 Particle Counter
| Take a new look at indoor air quality. The Fluke 985 Particle Counter is the preferred choice for HVAC and IAQ professionals. From filter testing to IAQ investigations, the Fluke 985 is the portable solution for determining airborne particle concentrations. Use the Fluke 985 to immediately respond to occupant complaints, or as part of a comprehensive preventive maintenance program. With the Fluke 985, you can:
With a large screen, intuitive icons for navigation and on-screen data presentation, the Fluke 985 allows users to run more tests quickly, with less time spent cycling through screens to obtain the data. The Fluke 985 is lightweight and easy to use in any position and with easy data export options using USB cable, memory stick it’s easy to review and analyze the data anywhere and anytime. |
Assess air quality more easily and accurately. |
|
Measured specificationsChannels
| 0.3 μm, 0.5 μm, 1.0 μm, 2.0 μm, 5.0 μm, 10.0 μm |
Flow rate
| 0.1 cfm (2.83 L/min) |
Light source
| 775 nm to 795 nm, 90mW class 3B laser |
Count modes
| Raw counts, #/m3, #/ft3, #/liter in Cumulative or Differential mode |
Counting efficiency
| 50 % @ 0.3 μm; 100 % for particles > 0.45 μm (per ISO 21501) |
Zero count
| 1 count/5 minute (JIS B9921) |
Concentration limits
| 10 % at 4,000,000 particles per ft3 (per ISO 21501) |
Data storage
| 10,000 records (rotating buffer) |
Alarms
| Counts, low battery, sensor fail |
Delay time
| 0 to 24 hours |
Sample inlet
| Isokinetic probe |
Security
| Administrator password control (optional) |
Communication mode
| USB or Etheret |
Dimensions (L x W X D)
| 27.2 cm x 9.9 cm x 5.3 cm (10.7 in x 3.9 in x 2.1 in) |
Weight
| 0.68 kg (1.5 lb) |
Power adapter
| 100 V ac to 240 V ac, 12 V dc, 2.5 A |
Rechargeable battery
| Li-ion 7.4 V 2600 mAh; 10 hours typical use (5 hours continuous sampling) / 3.5 hours |
Calibration
| PSL particles in air (NIST traceable) |
Operating environment
| 50 °F to 104 °F (10 °C to 40 °C)/< 95 % non-condensing relative humidity |
Storage environment
| 14 °F to 122 °F (-10 °C to 50 °C)/Up to 98 % non-condensing relative humidity |
Warranty
| One-year |
Accessories included
| Cradle for charging and convenient USB and Ethernet communications, ENET CAT5E 7 foot cable, USB-A to MINI-B 6 foot cable, 12 V dc power supply, zero count inlet- filter, filter adapter, sample inlet protective cap, hard case, getting started manual and users manual CD |
| Model Name | Description | Price List |
| Fluke 985 | Particle Counter Model Includes:
| On Request |
