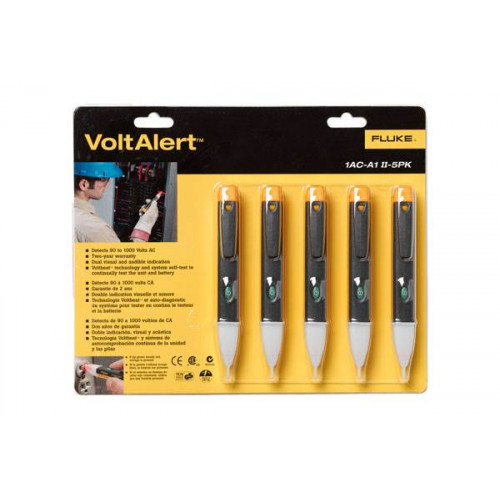

Fluke 1AC II A1 VoltAlertTM Electrical Tester 5PK
The pocket-sized voltage detector
The next generation VoltAlert™ AC non-contact voltage testers from Fluke are easy to use – just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there's voltage present. Electricians, maintenance, service, safety personnel, and homeowners can quickly test for energized circuits in the workplace or at home.
- Voltbeat™ technology and continuous self-test – so you always know it's working
- Upon detection, tip glows and beeper sounds
- CAT IV 1000 V for added protection
- Expanded range: 90 V AC to 1000 V AC
- 20 V to 90 V AC control circuit model also available
- Two-year warranty
- Batteries included
- On/Off Button
- Audible/Silent
- 5 pack
Specifications Operating principles Senses the steady state electrostatic field produced by AC voltage through insulation without requiring contact to the bare conductor. A red glow at the tip and a beeping noise (if not switched OFF) indicates the presence of voltage. Voltage sensing ranges Nominally, 90 V AC to 1000 V AC Detector tip style Flat-tip Light source One high intensity red LED Agency approvals c CSA us, CE, C-Tick Safety rating 1000 V, CAT IV Safety compliance Meets IEC 61010-1:2001, UL 61010-1 (2nd ed.), CAN/CSA-C22.2 No. 61010-1-04, and ISA-82.02.01 Pollution Degree 2 EMC compliance Meets IEC 61326-1:2006 IP rating IP 40 Operating temperature -10°C to 50°C (-14°F to 122°F) Operating humidity ranges 0% to 95% (0°C to 30°C) 0% to 75% (30°C to 40°C) 0% to 45% (40 to 55°C) Operating altitude 3000 m Cleaning Clean with damp cloth Batteries 2 AAA alkaline batteries included Battery life Typical battery life of greater than 1 year Warranty period Two years Product does not respond to random electrostatic discharge. Title Fluke 1AC II Data Sheet Download
