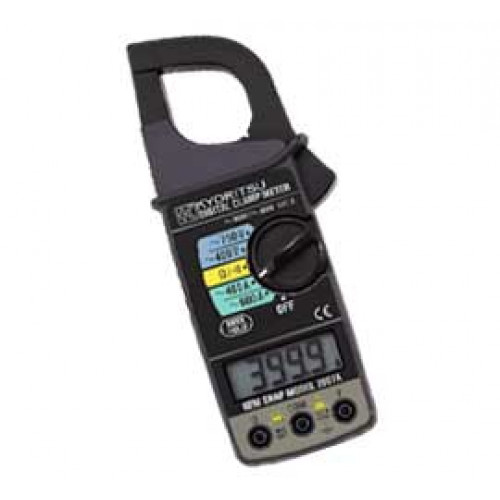

Digital Clamp Meters

Digital Clamp Meters

0 reviews | Write a review

Brand: Kyoritsu

Product Code: 2007A

Mejdaf part number 80-203B

Availability: On Request

Description
Reviews (0)

Sleep function to save battery
•	Data hold function.
•	Digital display with maximum 4000 counts.

2007A

AC A	400/600A \|±1.5%rdg±4dgt [50/60Hz] \|±2%rdg±5dgt [40 - 400Hz]
AC V	400/750V \|±1.2%rdg±3dgt [50/60Hz] \|±1.5%rdg±4dgt [40 - 400Hz]
Ω	400/4000Ω\|±1.5%rdg±2dgt
Continuity buzzer	buzzer sounds below 50±35Ω
Conductor Size	Ø33mm max.
Safety Standard	IEC 61010-1 CAT III 300V IEC 61010-2-031 IEC 61010-2-032 IEC 61326 (EMC)
Frequency Response	40Hz - 400Hz
Withstand Voltage	3700V AC for 1 minute
Power Source	R03 (AAA) (1.5V) × 2
Dimensions	195(L) × 78(W) × 36(D)mm
Weight	260g approx.
Accessories	7066A (Test leads) 9097 (Carrying case) R03 (1.5V) × 2 Instruction Manual
Optional	8008 (Multi-Tran)
