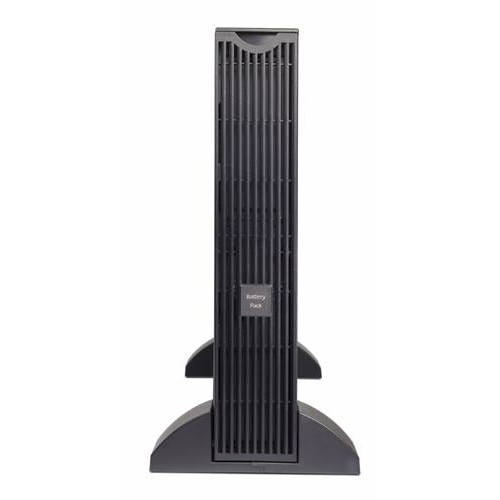

APC Smart-UPS RT 48V Battery Pack

Output

• Output Voltage Distortion
  Less than 3%
• Output Frequency (sync to mains)
  50/60 Hz +/- 3 Hz user adjustable +/- 0.1
• Load Crest Factor
  3 : 1
• Waveform type
  Sine wave
• Bypass
  Built-in Static Bypass

Input

• Number of Power Cords
  1
• Input Breaker Capacity
  0 A
• Rack Height
  2 U

Battery

• Battery type
  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Included Battery Modules
  2
• Replacement Battery
  RBC31
• Replacement battery cartridge note
  Replace all batteries in operation together (UPS internal and external batteries) all-at-once
• RBC Quantity
  2
• Battery Volt-Amp-Hour Capacity
  864
• Runtime
  View Runtime Graph
  View Runtime Chart

Physical

• Maximum Height
  85 mm , 8.5 CM
• Maximum Width
  432 mm , 43.2 CM
• Maximum Depth
  483 mm , 48.3 CM
• Rack Height
  2 U
• Net Weight
  29.56 KG
• Shipping weight
  32.28 KG
• Shipping Height
  286 mm , 28.6 CM
• Shipping Width
  630 mm , 63.0 CM
• Shipping Depth
  594 mm , 59.4 CM
• Color
  Black
• Units per Pallet
  6.0

Environmental

• Operating Environment
  0 - 40 °C
• Operating Relative Humidity
  0 - 95 %
• Operating Elevation
  0-3000 meters
• Storage Temperature
  -15 - 45 °C
• Storage Relative Humidity
  0 - 95 %
• Storage Elevation
  0-15000 meters

Conformance

• Standard warranty
  2 years repair or replace, optional on-site warranties available, optional extended warranties available

Sustainable Offer Status

• RoHS
  Compliant
• REACH
  REACH: Contains No SVHCs
