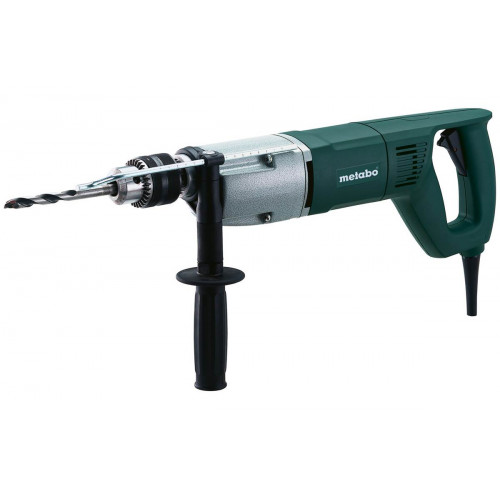

Electronic Two speed Drill, 16/10 mm 1100W,220V METABO
BDE 1100 Drill
§ Rated Input Power:1100 W
§ Drill Ø steel:16 / 10 mm // 5/8 / 3/8 "
§ Drill-Ø soft wood:40 / 25 mm // 1 5/8 / 1 "
§ No-Load Speed:0 - 640 / 0 - 1200 /min
§ Maximum torque:55 / 22 Nm // 487 / 195 in-lbs
- Robust die cast aluminium gear housing for optimum heat dissipation and durability
- Two-speed gearbox
- Suitable for powerful drilling of larger diameters and for stirring thick, liquid-like materials
- Comfortable operation and safety through auxiliary handle
· Description
- Robust die cast aluminium gear housing for optimum heat dissipation and durability
- Vario (V)-Electronics for working at customised speeds to suit various application materials
- Two-speed gearbox
- Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly
- Forward and reverse rotation
- Suitable for powerful drilling of larger diameters and for stirring thick, liquid-like materials
- Comfortable operation and safety through auxiliary handle
· Technical data
Characteristics
|
Rated Input Power |
1100 W |
|
Output Power |
620 W |
|
Drill Ø steel |
16 / 10 mm // 5/8 / 3/8 " |
|
Drill-Ø soft wood |
40 / 25 mm // 1 5/8 / 1 " |
|
No-Load Speed |
0 - 640 / 0 - 1200 /min |
|
Revolutions at Rated Load |
430 / 800 /min |
|
Gears |
2 |
|
Maximum torque |
55 / 22 Nm // 487 / 195 in-lbs |
|
Collar Diameter |
43 mm / 1 11/16 " |
|
Chuck Capacity |
3 - 16 mm // 1/8 - 5/8 " |
|
Drill Spindle Thread |
5/8 " - 16 UN |
|
Weight (without power cable) |
4.3 kg / 9.5 lbs kg |
|
Cable Length |
4 m / 13 ft |
Vibration
|
Drilling in metal |
4 m/s² |
|
Uncertainty of measurement K |
1.5 m/s² |
Noise emission
|
Sound Pressure Level |
85dB(A) |
|
Sound power level (LwA) |
95 dB(A) |
|
|
