CICULAR SAW,190mm Blade Dia,1400W 220V METABO

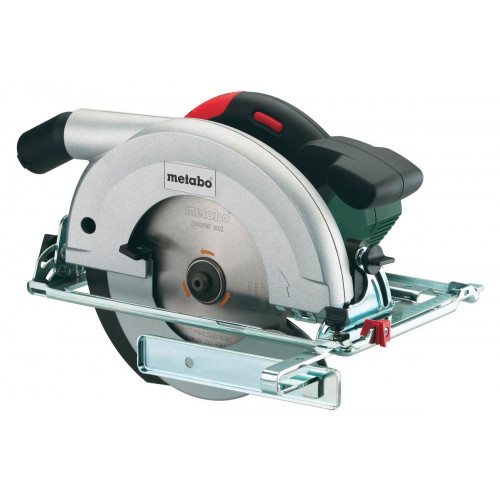

KS 66 Circular Saw
§ Rated Input Power:1400 W
§ Maximum cutting depth at 90°:66 mm / 2 19/32 "
§ Saw blade Ø x bore:190 x 30 mm / 7 1/2 x 1.181 "
§ No-Load Speed:4200 /min
· Description
§ Metabo S-Automatic torque limiting clutch: mechanical decoupling of the drive if the saw blade jams for safe working
§ Clearly visible cutting indicator for sawing after initial cut
§ 0° position re-adjustable for highest cutting precision
§ Lubrication system for long service life of the gear
§ Extraction possibility by means of connecting an all-purpose vacuum cleaner
§ Controllable chip ejection by means of rotating extraction nozzle
§ Auto-stop carbon brushes to protect the motor
§ Precise cuts with guide rail and matching adapter (accessory)
· Technical data
Characteristics
Rated Input Power | 1400 W |
Output Power | 800 W |
Maximum cutting depth at 90° | 66 mm / 2 19/32 " |
Maximum cutting depth at 45° | 47 mm / 1 13/16 " |
Saw blade Ø x bore | 190 x 30 mm / 7 1/2 x 1.181 " |
Swivel range from / to: | 0 / + 45 ° |
No-Load Speed | 4200 /min |
Revolutions at Rated Load | 3200 /min |
Max. cutting speed | 42 m/s / 138 ft/s |
Torque | 9 Nm / 80 in-lbs |
Weight (without power cable) | 5.5 kg / 12.1 lbs |
Cable Length | 4 m / 13 ft |
Vibration
Sawing chipboards | 2.5 m/s² |
Uncertainty of measurement K | 1.5 m/s² |
Noise emission
Sound Pressure Level | 95 dB(A) |
Sound power level (LwA) | 106 dB(A) |
Uncertainty of measurement K | 3 dB(A) |
