KLEPS250
| product description: | order number: 973 528-100 |

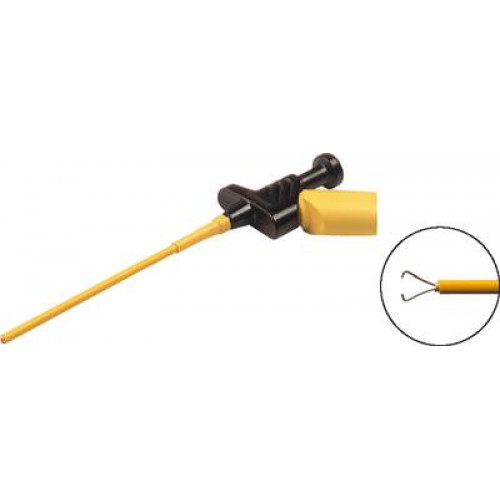

| description: | Contact-protected clamp-type test probe with rotating grip jaws and flexible shaft. The grip jaws allows clamping of pins and wires up to a max. of 4 mm diameter. Brass 4 mm diameter contact-protected socket connection. Connects with MLN and MLB measuring leads. |
| typ: | KLEPS 250 schwarz/black |
| system: | 4 mm sliding sleeve system |
| order number: | 973 528-100 |
| clamping range: | 4 mm |
| clamping typ: | rotating grip jaws |
| color |  |
| other color versions: |  |
| technical data | |
| measurement category acc. to IEC 61010: | CAT I |
| type of termination: | 4 mm socket (unsprung) |
| rated voltage: | 30 VAC / 60 VDC |
| rated current: Please consider derating curve! | 4 A |
| contact resistance: | 100 mOhm |
| material | |
| contact material: | grip jaws: spring steel socket: brass |
| contact surface material: | grip jaws: tin |
| housing material: | PF |
| environmental conditions: | |
| temperature range: | -25 °C to +80 °C |
| inflammable class: | |
| housing (basic material): | UL 94 V - 0 |
| drawing | |
| |  |
