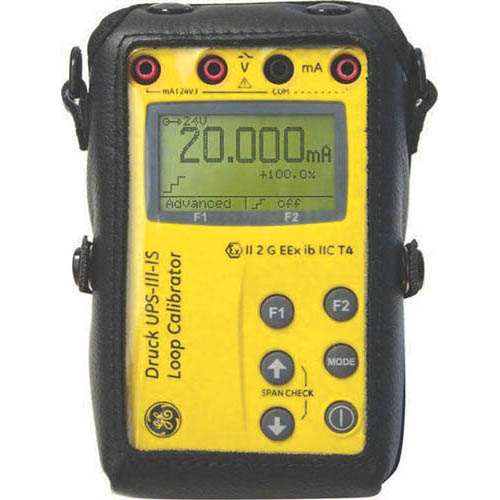

GE Druck UPS-III-IS

Intrinsically Safe Loop Calibrator for mA
and V

Product Features:

• ATEX/IEC intrinsically safe for use in hazardous zones
• Measure or source 0 to 24 mA
• Accuracy 0.015% of reading
• Dual mA and % readout, linear or flow
• Step, span check, valve check, ramp
• 50 VDC measurement and continuity
• Hart compatible with internal 220 Ω loop resistor
• EMC Compliance to EN 61326
• Graphic display with menu-driven interface
• Battery voltage and battery low indicator
• Primary reading in mA or %
• Auto power off option
• Dimensions (w x h x d): 3.5 x 5.5 x 1.7 in. (90 x 140 x 42 mm)
• The GE Druck UPS-III IS Intrinsically Safe Loop Calibrator is a rugged and extremely compact loop calibrator. It measures 3.5 x 5.5 x 1.7 in (90 x 140 x 42 mm) and weighs just 16.2 oz (460 g). It is an essential tool for loop testing, instrument maintenance and valve set up, with an easy-to-read display and simple-to-use time saving features. The UPS-III IS Loop Calibrator can supply power (source mode) and produce readings (measure mode) to perform field calibrations on 2-wire devices. The set-up menu enables the user to "source" or "measure" in either voltage or current and to perform continuity tests.

Graphic Display

• The graphic display with menu-driven interface is easier to use than traditional knobs, switches, multi-function keys and dual key sequences.

Measure or Source 0 to 24 mA

• An internal loop supply is available in both measure and source modes, essential during plant shutdowns.

Accuracy 0.015% of Reading

• This includes 12 month stability and temperature effects. The UPS III IS can maintain a 4:1 calibration ratio with the latest instrumentation and is typically 10 to 40 times more accurate than a Digital Multi-Meter (DMM).

Simultaneous % Readout

• Displays mA and the percentage value of 4 to 20 mA or 0 to 20 mA. The UPS III IS also converts mA readings to % flow. This is not possible with many loop calibrators.

Step, Span Check and Value Check

• Step quickly through linearity tests and zero/span adjustments. In valve mode, seating can be checked and the actuator set.

Auto Step and Ramp

• Outputs have adjustable rates (1 to 599 seconds) for single-handed loop testing, valve set-up and slew rate checks.

"Fast Set" Output

• Allows values to be set to within 0.001 mA using the arrow keys. Holding a key quickly ramps the output to the next value. The system is ideal for alarm trip tests.

50 VDC Measurement

• For loop diagnostics and maintenance of voltage output instruments

HART Compatible

• Internal 220 S loop resistor (menu selectable)

EMC Compliance to EN 61326

• Complies with heavy industry standard. Most loop calibrators are only suitable for light industrial use. This loop calibrator may be used in zones 1 and 2 for industries with any gas group.

Included Accessories

• 1 - Loop Calibrator (UPS-III-IS)
• 1 - Leather Case with Carrying Strap
• 1 - Certificate of Calibration
• 1 - User Guide
• 1 - Set of Test Leads
• 1 - Set of Alkaline Batteries
