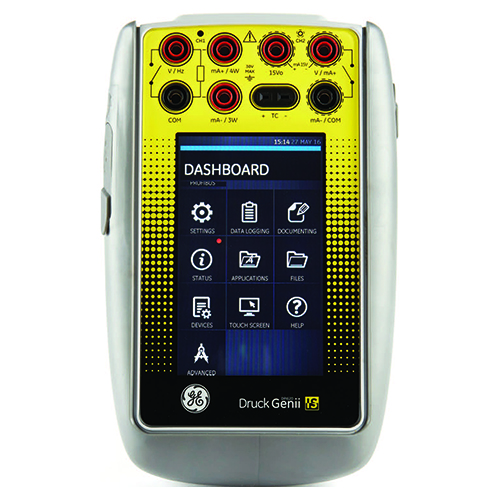

DPI 620G-IS-L Intrinsically Safe Multifunction Calibrator without HART/Fieldbus Communicator GE Druck
Product Overview:
The GE Druck DPI620G-IS-L Genii Intrinsically Safe Multifunction Calibrator is an easy to use, rugged, and highly accurate multifunction instrument for calibrating and maintaining process instrumentation. It provides simultaneous measurement and source capabilities for the setup, testing and calibration of most types of process instruments, including transmitters, transducers, gauges/indicators, switches, proximity detectors, counters, RTDs, thermocouples and valve positioners.
The modular design and functionality of the DPI620G-IS-L means it can be expanded over time and tailored to applications as needs change. The calibrator comprises four system components to provide the multi-functionality to perform duties formerly requiring a wide range of different instruments.
The DPI620G-IS-L provides world-class pressure measurement and generation. It includes ATEX and IECEx approval and is intrinsically safe for use in zone 1 and zone 2 classified hazardous areas.
Product Features:
- Intrinsically safe with ATEX and IECEx approval for use in zone 1 and 2 classified hazardous areas
- Provides highest accuracy for measuring, sourcing and simulating electrical, frequency, temperature and pressure
- Logs up to 6 channels for simultaneous measurement and sourcing of mA, V, Ohms, frequency, pressure, RTDs, T/Cs
- Calculates errors between inputs and outputs
- Large (4.3 in.) color LCD display with touchscreen and improved daylight readability
- Pressure system generates up to 1500 psi (100 bar) pneumatic and 15,000 psi (1000 bar) hydraulic pressures
- Modular design for easy range expansion with interchangeable pressure modules (sold separately)
- UI Dashboard allows quick access to applications, including Calibrator and Documenting
- Internal mA loop power and communicator power hubs
- 800 MHz Processor, 512 MB 800 MHz SDRAM, 8 GB Internal flash memory
- IP54 rated; approvals include CE Marked, Baseefa 16ATEX0002X, IECEx BAS 16.0010X, Ex II 1 G
- Excels in multiple applications, including petrochemical, chemical, oil and gas, power, food, pharmaceuticals
Specifications
Processor and Memory 800 MHz Processor512 MB 800 MHz SDRAM
8 GB Internal flash memory Display Size: 110 mm (4.3 in) diagonal; 480 x 800 pixels
LCD: Color display with touch-screen
Protected by 2 mm toughened glass, impact-tested in accordance with BS EN 61010-1:2010 (0.5kg object from 1 m) Languages English {Default}, Chinese, French, German, Italian, Portuguese, Russian, Spanish, Dutch, Japanese Operating temperature -10° to 50°C (14° to 122°F) Storage temperature -20° to 70°C (-4° to 158°F) Ingress Protection IP54 Humidity 0 to 90% RH Non-condensing Shock / Vibration BS EN 61010-1:2010
MIL-PRF-28800F for Class II equipment, 1 m Drop Tested EMC Electromagnetic compatibility: BS EN 61326-1:2006 Electrical safety Electrical – BS EN 61010-1: 2010 Pressure safety Pressure Equipment Directive - Class: Sound Engineering Practice (SEP) Approval CE Marked
Baseefa 16ATEX0002X
Ex II 1 G
Ex ib IIC T4 Gb (-10°C ≤ Ta ≤ +50°C)
IECEx BAS 16.0010X Size (L x W x H) 183 x 114 x 55 mm (7.2 x 4.5 x 2.2 in) Weight 1.1 kg (2.4 lb) – battery included Power supply Lithium-ion battery (Part number: IO620G-IS-BATTERY)
Capacity: 4800 mAh
Nominal voltage: 3.75 V
Charge temperature: 0° to 40°C (32° to 104°F)
Discharge temperature: -10° to 50°C (14° to 12°F)
Charge/discharge cycles: > 500 > 70% capacity Duration Measure functions (CH1): ≈ 7 hours continuous
Dual Function, mA measure (CH2): ≈ 5 hours (Loop enabled at 12 mA) Connectivity USB Type Mini B (client)
