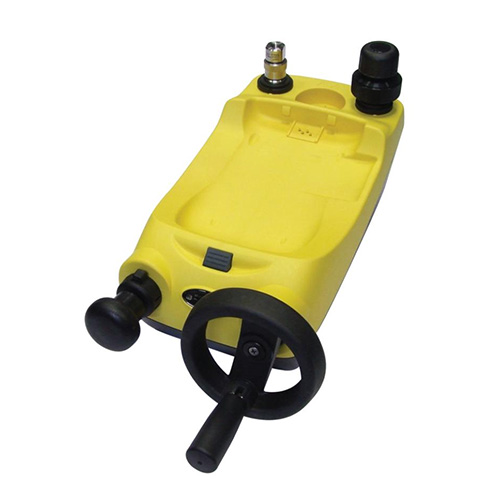

PV 623-IS Intrinsically Safe Hydraulic Pressure Station for DPI 620 Genii-IS Series, 15,000 psi (1000 bar)
Brand: GE Sensing (Druck)
Product Code: PV 623-IS
Mejdaf part number 63-071
Availability: By request
The GE Druck PV623-IS Intrinsically Safe Hydraulic Pressure Station is a hydraulic pressure generator for pressures up to 15,000 psi (1000 bar). It is designed for stand-alone operation as a pressure generator and can replace conventional hand pumps to provide greater efficiency and ease of use. The pressure station is furthermore ATEX and IEC approved for use in hazardous areas.
Combining the PV623-IS Pressure Station with a PM620 pressure module and a DPI620G-IS calibrator creates a uniquely capable, self-contained pressure calibrator. The PV623-IS Pressure Station can also be used on the workbench as a comparator.
Product Features:
- Stand-alone pressure generator replaces conventional hand pumps
- Provides high efficiency and easy operation
- ATEX and IEC approved for use in hazardous areas
- Suitable for use with DPI620G-IS calibrators and PM620 pressure modules
- Can be used on workbench as a comparator
- Quick-fit pressure connection system requires no tools or sealing tape
- Advanced pressure generation: 0 to 15,000 psi (1000 bar) hydraulic
- Pressure media: De-mineralized water or mineral oil (ISO viscosity grade < 22)
- Operating temperature: 14° to 104°F (-10° to 40°C)
